Current Location：Home > Products Center > Air Compressor >

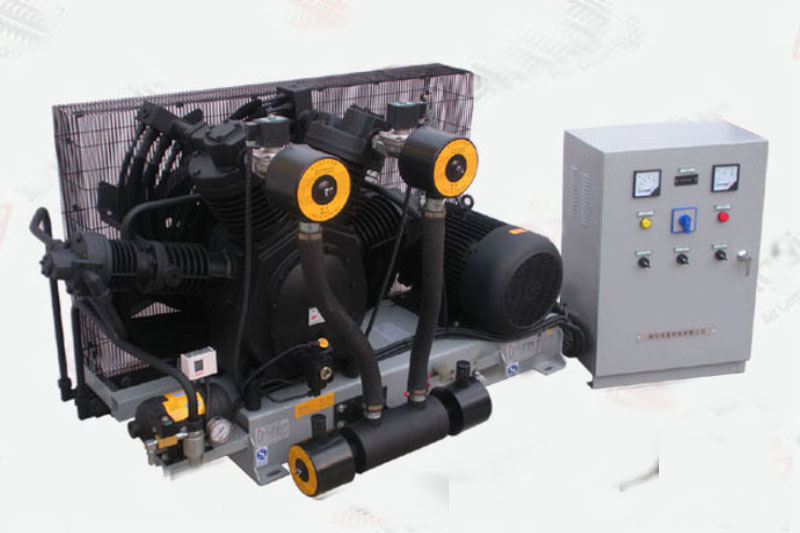

Air Compressors (single unit)
Discharge capacity:?2.0Nm3/min
Discharge pressure:?3.0~4.0Mpa
Installed power:?30HP(22KW)
series |
Model No |
? ? ?Air Flow (Nm3/min) |
? ? ? ? Pressure （Mpa） |
Power （KW） |
Weight (kg) |
? ? ? ? ? ? ? ? ? ? ? ?Size (mm) Length×Width×Height |
83SH |
83SH-2230 |
2.0 |
3.0 |
22 |
680 |
2170×1020×1050 |
83SH-2240 |
2.0 |
4.0 |
22 |
680 |
?

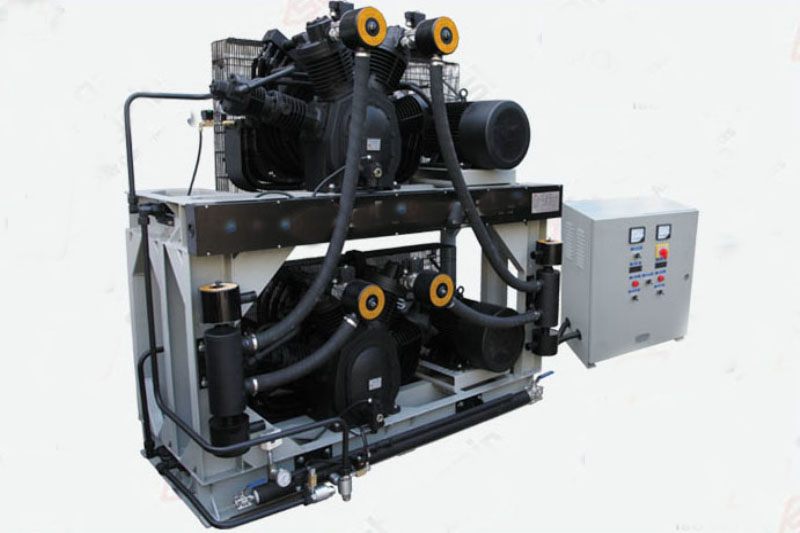

Air Compressor (Double Deck)
Discharge capacity:?4.0Nm3/min
Discharge pressure:?3.0~4.0Mpa
Installed power:?30HP×2(22KW×2)
?
series |
Model No |
Air Flow (Nm3/min) |
? ? ? Pressure （Mpa） |
Power （KW） |
Weight (kg) |
? ? ? ? ? ? ? ? ? ? ? ? ?Size (mm) Length×Width×Height |
83SH |
2I-83SH-2230 |
4.00 |
3.0 |
22×2 |
1500 |
2100×1050×2250 |
2I-83SH-2240 |
4.00 |
4.0 |
22×2 |
?
??

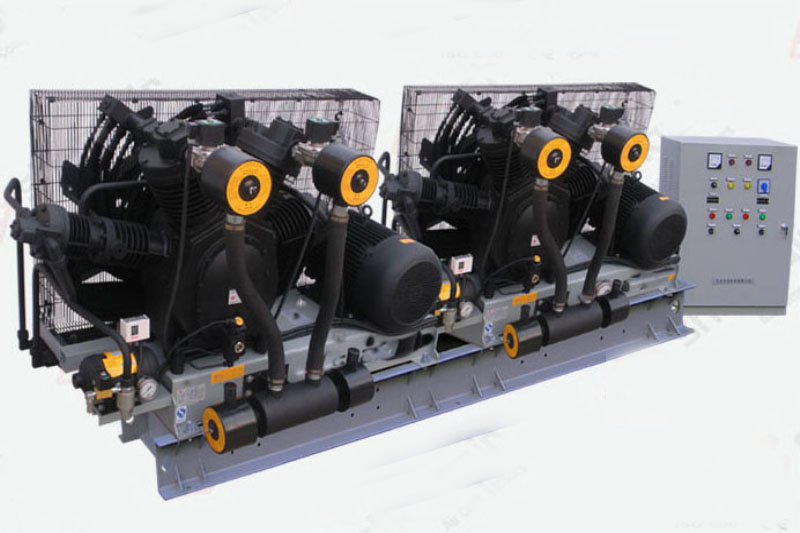

Air Compressor (Double-Engine Set)
Discharge capacity:?4.0Nm3/min
Discharge pressure:?3.0~4.0Mpa
Installed power:?30HP×2 (22KW×2)
series |
Model No |
Air Flow (Nm3/min) |
? ? ? ? ?Pressure （Mpa） |
Power （KW） |
Weight (kg) |
? ? ? ? ? ? ? ? ? ? ?Size (mm) Length×Width×Height |
83SH |
2-83SH-2230 |
4.00 |
3.0 |
22×2 |
1550 |
3780×1100×1260 |
2-83SH-2240 |
4.00 |
4.0 |
22×2 |
?
